FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

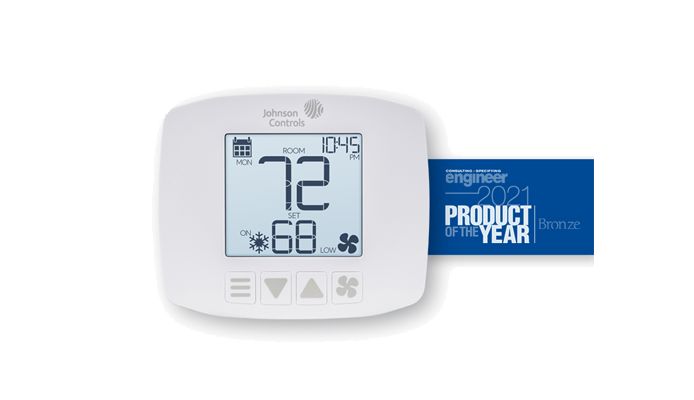

A thermostat from the FCP Series, with a blue 'Product of the Year' banner beside it

FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

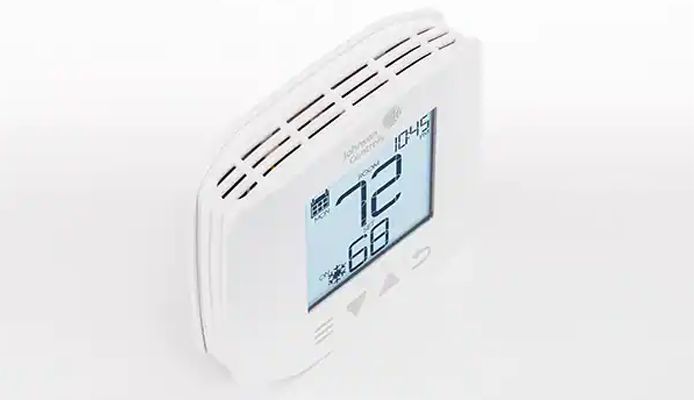

A three-quarters view of an FCP Series thermostat

FCP Series Thermostats

Contact Us

Product Overview

The T701DFN-4 Non-Programmable and T701DFP-4 Seven Day Programmable Fan Coil Thermostats provide simple-to-use control of two- or four-pipe fan coil units. These fan coil thermostats provide on and off control, three speeds of fan control, and dry contact unoccupied control. The thermostats are designed as stand-alone devices for use in commercial buildings, such as schools and hotels, and provide the user access to parameters such as system mode, fan mode, and temperature setpoints


FCP Series Thermostats

Programmable and Non-Programmable Thermostats for Fan Coil Units and PTACs

Features

  • Compatible with: 2-pipe FCU with up to a 3-speed fan
  • Compatible with: 4-pipe FCU with up to a 3-speed fan
  • Compatible with: Conventional PTAC
  • Compatible with: Heat pump PTAC with or without auxiliary heat
  • Pre-installed lead wires for fast installation
  • 20 easy pre-set configurations for installers and users
  • Configurable “normally open / normally closed” contact, to set the occupied or unoccupied mode
  • On-board and remote temperature sensors available
  • White LED backlight, with adjustable brightness for easy operation in the dark
  • FCP-PA-701-NF is a no-fan version of the programmable FCP, designed primarily for fan coils with independent fans and heat-only applications where no fan is needed
  • FCP-PA-701 features up to six programmable periods per day
  • FCP-PA-701 features an RTC backup battery with a minimum backup time of 48 hours
  • Temperature in Fahrenheit or Celsius


Resources

Digital Brochure

T701DFN-4 Non-Programmable and T701DFP-4 Seven Day Programmable Thermostat Catalog

View

Product Bulletin

T701DFN-4 Non-Programmable Thermostat Installation Instructions

View

Quick Start Guide

T701DFP-4 Seven Day Programmable Thermostat Installation Instructions

View

User Guide

T701DFN-4 Non-Programmable Thermostat Owner’s Manual

View

User Guide

T701DFP-4 Seven Day Programmable Thermostat Owner’s Manual

View
