Valves and Actuators
Our HVAC Control Valves and Actuators are critical components in an end-to-end system, and their efficiency is an important factor in overall system efficiency. Choose from thousands of valve and actuator combinations that are built to deliver efficient, dependable, long-lasting and leak-proof performance. Our consistent designs and convenient built-in operating features provide outstanding control – without the need for field add-ons.

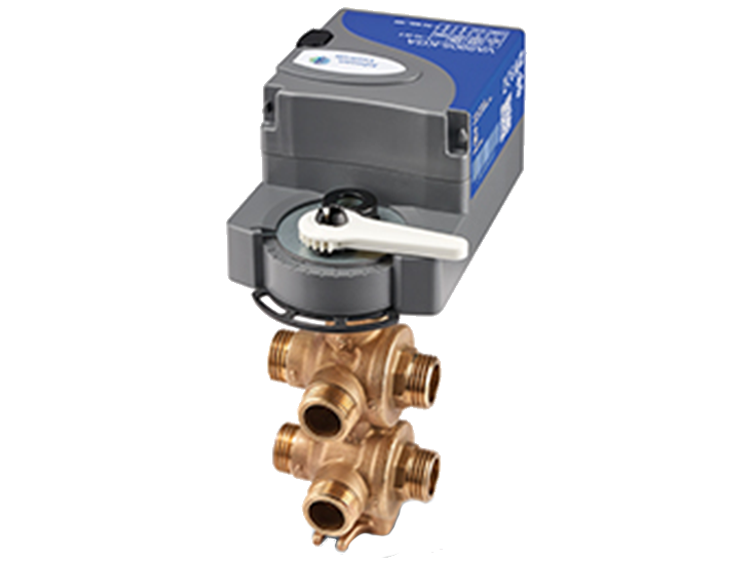

We’ve rotated the HVAC industry 270°
The new, patented Johnson Controls 270° six-way valve and actuator signals a new direction for chilled beam and fan-coil applications. It minimizes the number of valves and actuators required, which provides more control, greater accuracy, more efficient energy use, and – ultimately – improved occupant comfort.
Choose an actuator that combines versatility and simplicity

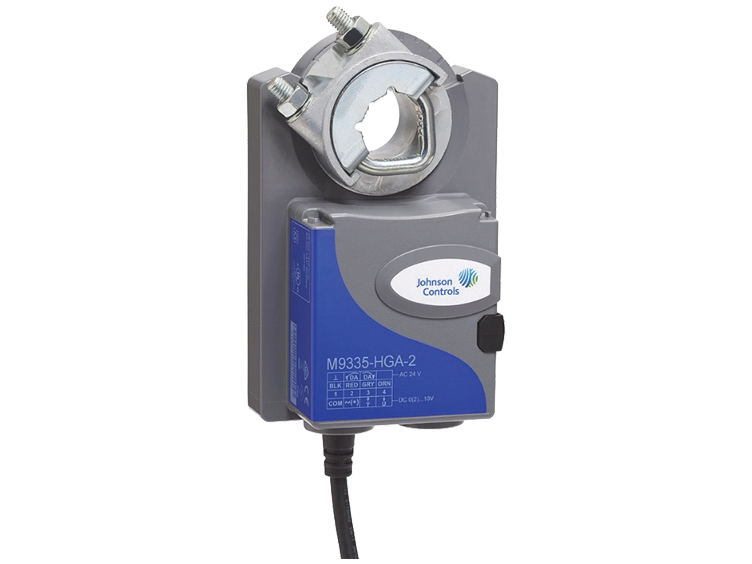

The M9300 Series Electric Non-Spring Return Actuator easily converts between damper and valve applications. That simplifies installation because one actuator covers a wider range of applications. Plus, it features a universal input with automatic signal detection that handles all input signals – on/off, floating and proportional.
Watch the valve installation video

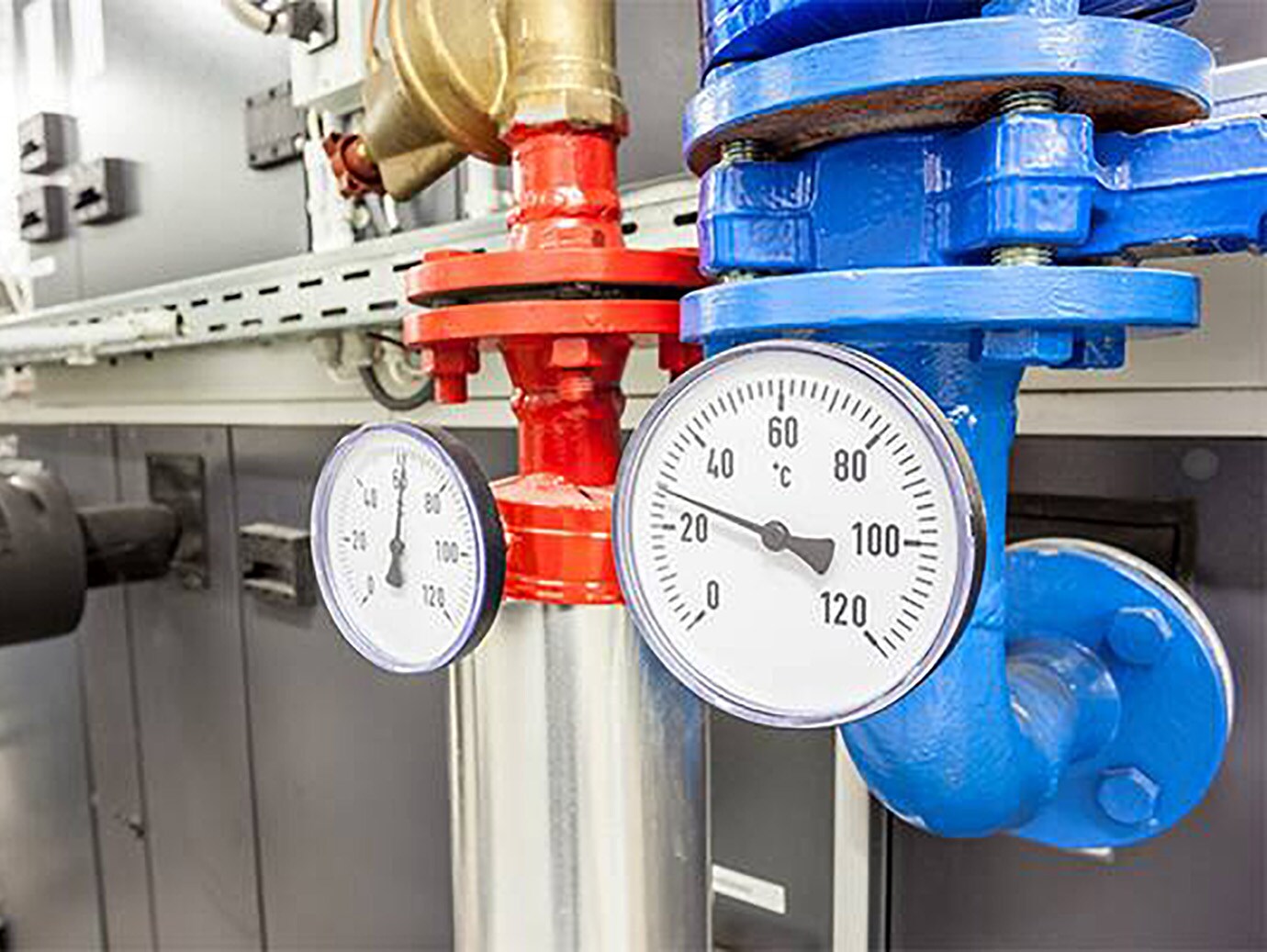

Pairing a ball valve and an actuator has never been easier
The Johnson Controls VG1000 Series is the most complete ball valve product line in the HVAC industry. VG1000 Series Ball Valves have superior wear resistance, low operating torque, and double protection against stem leaks. And now it’s as simple as 1-2-3 to match it to the perfect Johnson Controls actuator, using the convenient VG1000 In-store Selection Chart.

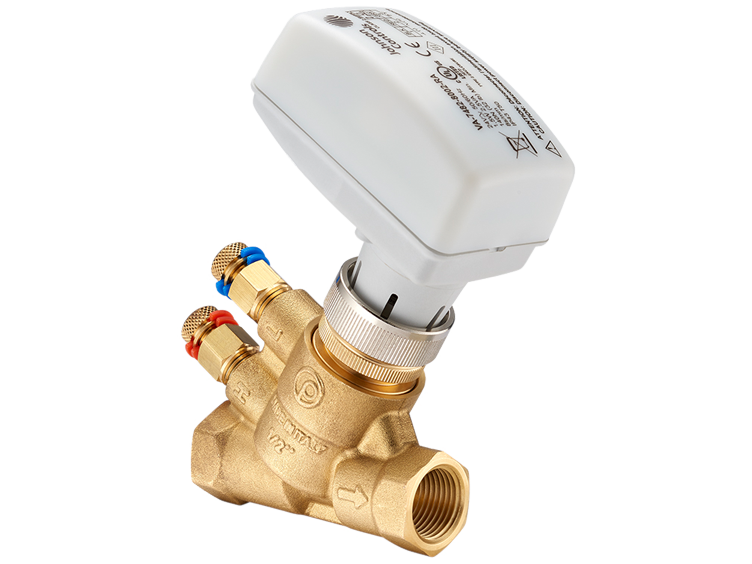

Greater efficiency and comfort begin with the control valve

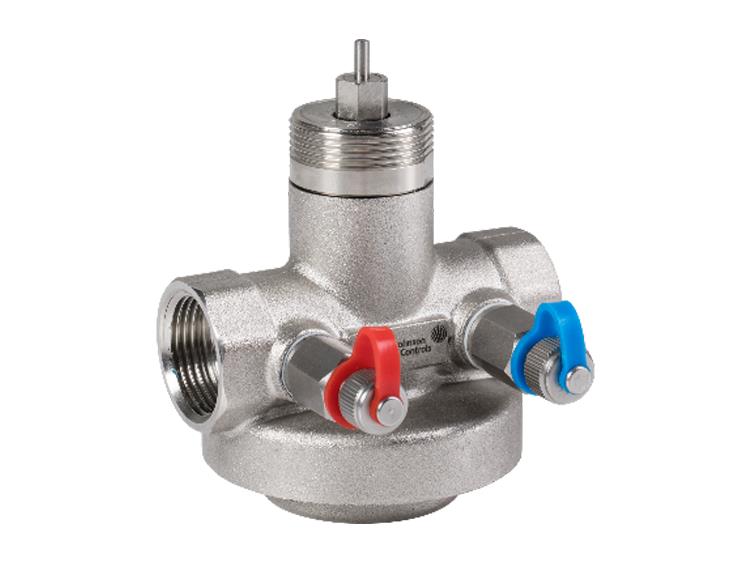

Deliver a stable flow, regardless of pressure fluctuations, with the new VP140 Series of Pressure Independent Control Valves (PICVs). By combining a pressure regulator, a regulating valve and a control valve, it increases occupant comfort and system efficiency without the need for balancing valves. The VP140 Rotary (Ball) Valve is ideal for applications that require enhanced flexibility for seasonal commissioning and different room layouts, and the VP140 Compact Axial (Globe) Valve is designed for applications where a compact valve and actuator footprint is needed. All models deliver reduced installation, commissioning and operational costs.
Install your universal ball valve linkage properly
The M9000-700 Universal Ball Valve Linkage Kit makes it easy for you to retrofit actuators in any application, no matter the brand of ball valve. Assembly is easy with no special tools required. This new linkage kit is designed specifically for field mounting Johnson Controls VA(M)9203 and VA(M)9208 Series Spring Return and VA(M)9104 and VA(M)9310 Series Non-Spring Return Actuators to ball valves from various manufacturers in sizes from 1/2 inch to 2 inches.
